BPC-I3855U-2NU/BPC-I6100U-2NU/BPC-I6200U-2NU/BP-7200U

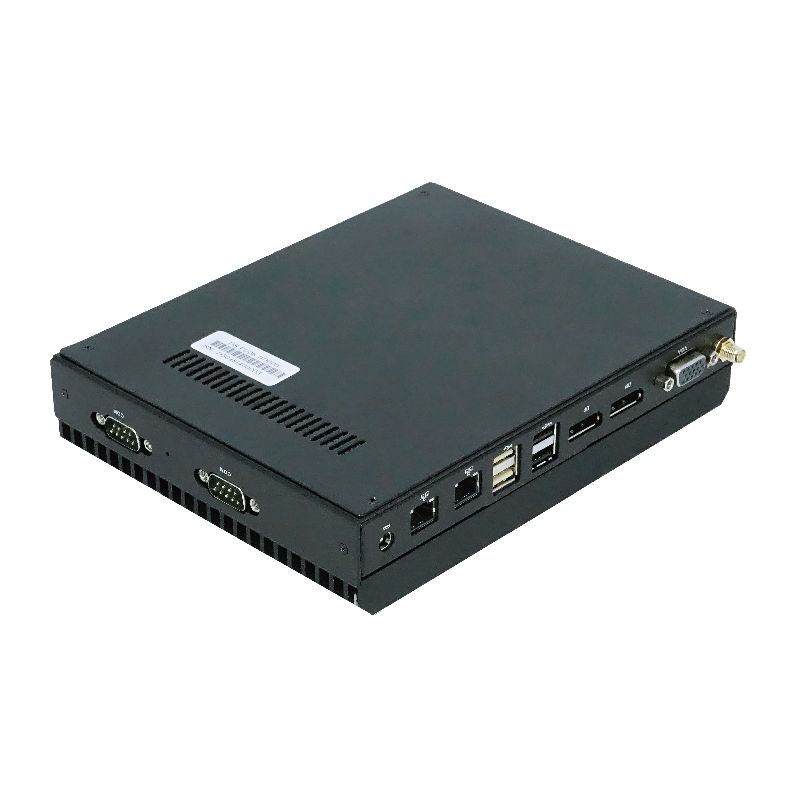

Intel 6th/7th Gen. CPU Supported Compact Size Fanless Computer

Key Features

  • Support Intel 6th/7th Gen. mobile CPU
  • Ultra compact size with aluminum fanless design
  • 2*SO-DIMM DDR4 2133MHz up to 32GB
  • Support H.264, H.265 hardware decoding
  • 1*SATA3.0 2.5inch, mini PCIE MSATA
  • 4*USB3.0, 2*Ethernet
Models BPC-I3855U-2NU BPC-I6100U-2NU BPC-I6200U-2NU BP-7200U
CPU Intel Celeron 3855U Intel Core I3-6100U Intel Core I5-6200U Intel Core I5-7200U
Frequency 1.6G 2.3G 2.3G, up to 2.8G 2.3G, up to 2.8G
Cores/Threads Dual Core/Dual-threads Dual Core/Quat-threads Dual Core/Quat-threads Dual Core/Quad-threads
Type DDR4-2133MHz, 2*SO-DIMM
Max. 32GB
GPU Integrated Intel@ HD Graphics
GPU Type DirectX12, OpenGL4.4 and OpenCL 1.2
DP 1.2 Max.4096 x 2304 @60Hz (2 Ports)
VGA Max.2560 x 1600 @60Hz
Audio Realtek ALC662-VD0, 1 x MIC-IN, 1 x AUDIO OUT
Network 2 x Intel i219LM & Realtek RTL8111F Ethernet, support remote wakeup
Serial Port 2 x COM Port (DB9)
USB Port 4 x USB 3.0, 2 x USB 2.0
Mini PCIE#1 1 x full height Mini-PCIe, support MSATA
Mini PCIE#2 1 x full height Mini-PCIe, support WIFI, 4G, 3G module
2.5# SATA Port 1 x 2.5'' SATA drive bay (Max Height 7.5mm)
MSATA Port 1 x mSATA III
OS Windows 7, 8.1, 10, Linux
Adapter Type 19V 2.1A DC-IN 2.5mm
Material Metal + Aluminum
Dimension 190 x 149 x 40mm
Color Black
Cooler Fanless Design
