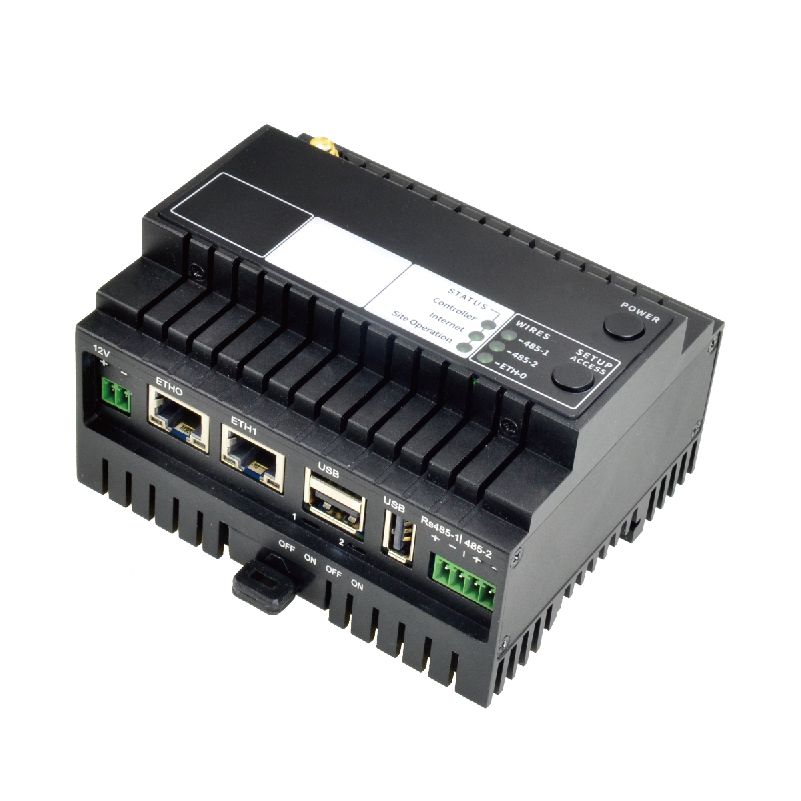

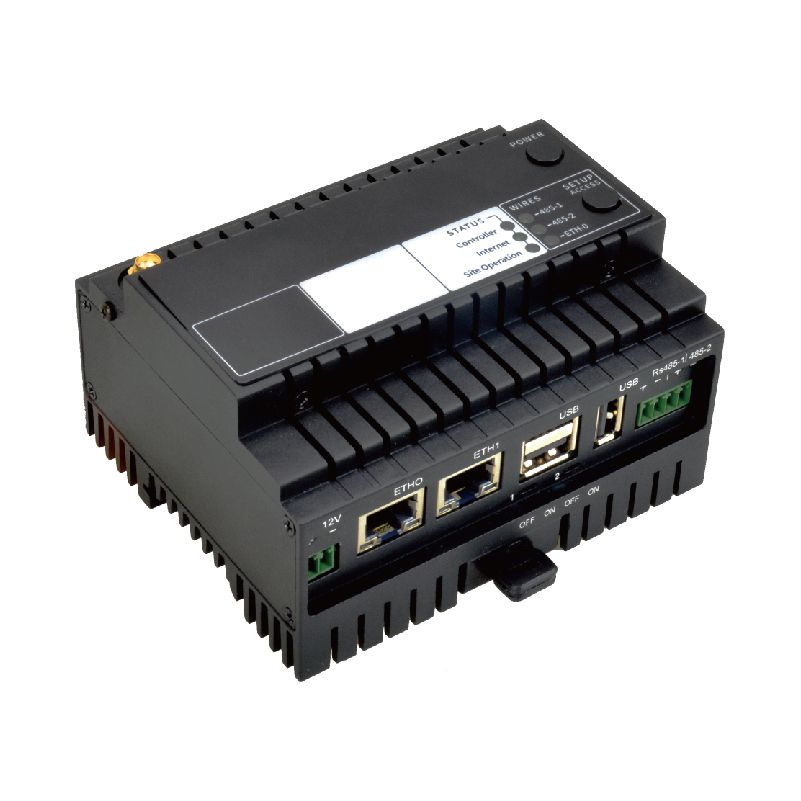

BPC-N2807-EMS
Intel Celeron N2807 SoC with 2 RS485 / 2 GbE Palm-Size Fanless Box PC
Key Features
- Intel Celeron N2807 Dual Core 1.58 GHz CPU
- DIN-Rail system with essential I/O ports on front-side
- 2GB DDR3L RAM onboard
- 2 GbE, 3 USB 2.0
- 2 RS485 (4pin Phoenix terminal)
- wifi and 4G supported Linux Alpine 3.6.2.supported DC-IN 12V (2pin Phoenix terminal)
| Processor System | CPU | Intel Celeron N2807 Dual Core CPU |
| Frequency | 1.33 GHz | |
| L2 Cache | 1 MB | |
| Memory | Onboard 2GB DDR3L 1066MHz RAM | |
|
Graphics |
Chipset | Intel® HD Graphics for Intel Atom® Processor Z3700 Series |
| VGA | Onboard 1 VGA socket | |
| Ethernet | LAN | 2 x GbE(Intel I211 , support Wake on LAN) |
| I/O Interfaces | USB | 3 x USB 2.0 |
| COM | 2 x RS485 (in 4pin Phoenix interface) | |
| Other | Watchdog timer | Supported |
| Expansion | M.2 | 1 x M.2 for wifi (key A) |
| 1 x M.2 for 4G (key B) | ||
| SIM | 1 x SIM slot for 4G module | |
| Storage | MSATA | 1 x MSATA for storage |
| Power Supply | Power Supply | 12V DC-IN (in 2pin Phoenix interface) |
| Operation System | Linux | Alpine 3.6.2 Supported |
| Microsoft Windows | Windows 7, Windows 8 and Windows 10 supported | |
| Mechanical | Case Material | Aluminum |
| Mounting | DIN Rail | |
| Dimensions | 108 x 90 x 61.5 mm | |
| Weight | 800g | |
| Environment | Operating Temperature | -10°C ~ +40°C |
| Storage Temperature | -30°C ~ +70°C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| LED | 6 x LED indicators | 1 x LED for power status |
| 3 x LED for GPIO electrical level status | ||
| 2 x LED for 2 RS485 function status | ||
| Buttons | Buttons | Button Key 1: Reset/Power |
| Button Key 2: Active or close wifi function | ||
| Regulation | Industrial grade EMI immunity | ESD: machine 8K/15K |
| RS232/RJ45---IEC61000-4-4/5 line to line 4KV, line to GND 10KV | ||
| DC-IN surge: IEC61000-4-4/5 2KV | ||
| FCC/CE |
