BPC-IN5105-6N1B
Fanless Mini Box PC Based on Intel Celeron N5105 with Six 2.5G Ethernet Ports
Key Features
- 11st Gen. Intel Celeron N5105 processor up to 2.9GHz
- TDP 10W low power consumption
- 2 x DDR4 memory up to 64GB
- 1 x M.2 2280 NVME/PCIe3.0 x1, 1 x SATA 3.0 for 2.5" HDD/SSD for storage

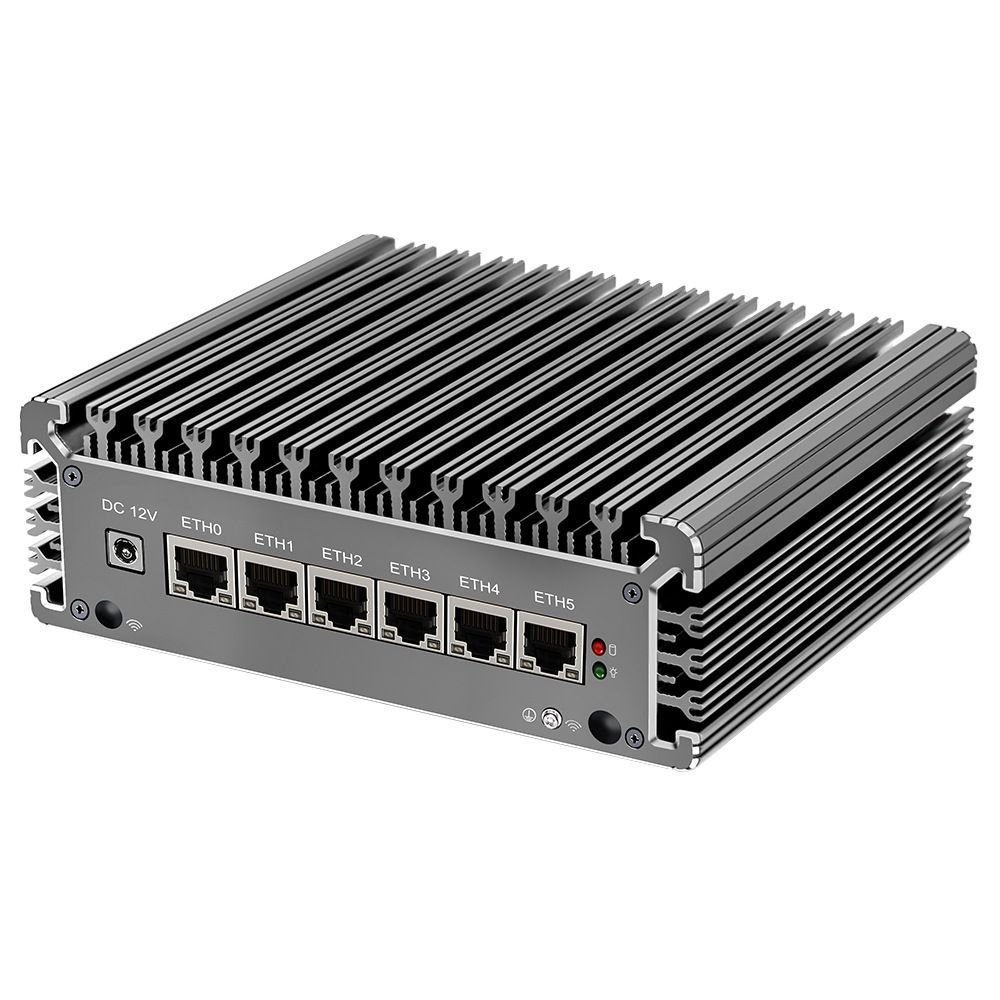

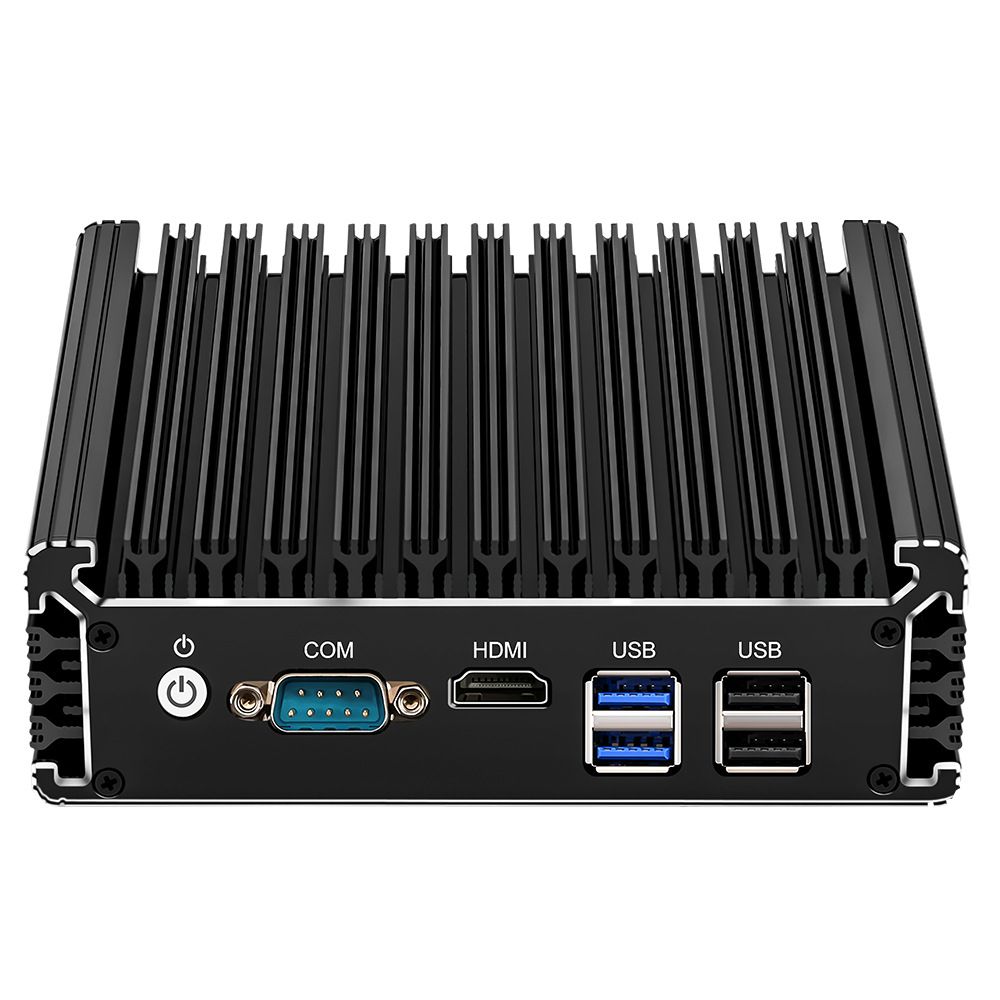

- 6 x 2.5G Ethernet port, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x RS232, 1 x Mini PCIe
- Support PVE/ESXi/UNRAID virtualization platform and (VT-x)/(VT-d) virtualization technology
BPC-IN5105-6N1B is an industrial fanless box pc with six Ethernet ports. Based on 11st Gen. Intel Celeron N5105 processor, it features low power consumption of TDP 10W and high frequency of 2.0GHz-2.9GHz. Besides 6 network ports, this mini box has four USB, one HDMI and one RS232.
Compared with ordinary computers, its rich I/O interfaces, dual DDR4 and powerful storage expansion (HDD and SSD) make it suitable for wide range of applications, such as Office work, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control and cloud server, etc.
Compared with ordinary computers, its rich I/O interfaces, dual DDR4 and powerful storage expansion (HDD and SSD) make it suitable for wide range of applications, such as Office work, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control and cloud server, etc.
| System | |
| CPU | Intel Celeron N5105, 2.0GHz-2.9GHz, 4 cores, 4 threads, 4M cache (10nm TDP 10W) |
| Memory | 2 x SO-DIMM DDR4 2400MHz/2666MHz/2933MHz, Max. 64GB |
| Storage | 1 x M.2 2280 NVME/PCIe3.0 x1, 1 x SATA 3.0 for 2.5" HDD/SSD |
| GPU | Intel UHD Graphics 450MHz-800MHz |
| Network | 6 x Intel i225-V B3 (2.5G network card) |
| OS | Windows 10, Windows 11, Ubuntu, pfSense, OPNsense, etc. |
| I/O Interfaces | |
| LAN | 6 x 2.5G RJ45 network port |
| Wireless Network | 1 x Mini PCIe, Wi-Fi/4G/3G optional |
| Display | 1 x HDMI |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Serial Port | 1 x RS232 |
| Power Supply | DC 12V-3A/5A |
| Mechanical & Environmental | |
| Enclosure Material | Aluminum |
| Cooling | Fanless, copper block and cooling holes at the bottom for heat dissipation |
| Mounting | VESA mounted or put behind a display screen |
| Dimension | 161mm(W) x 125mm(D) x 50.5mm(H) |
