BPC-I4500U-2N6 TL
Industrial Box PC Based on Intel i7-4500U CPU, supporting Haswell & Broadwell Celeron/Pentium/i3/i5/i7 Low Voltage Processors
Key Features
- Industrial grade chassis, stable, dust-proof and vibration-proof
- Passive cooling, silent and hardware automatic power up
- 2 x Intel LAN, 2 x HDMI, 4 x USB 3.0, 2 x USB 2.0
- 6 x COM (COM2 has 485 option, COM3 has VGA option)
- Industrial grade motherboard, GPIO 4 input 4 output (optional)
- Support VESA monitor mount
| System | |
| CPU | Intel i5-4200U, 2C/4T, 1.60GHz up to 2.60GHz, 3MB Smart Cache, 15W TDP |
| Chipset | Intel |
| GPU | Intel HD Graphics |
| Memory | 1 x SO-DIMM slot, support DDR3L 1333/1600MHz up to 8GB |
| Storage | 1 x Full-height Mini PCIe mSATA |
| Audio | ALC662, 16/20/24-bit PCM format |
| Network | 2 x Intel I211-AT Gigabit network |
| WLAN/Bluetooth | 1 x Half-height Mini PCIe WLAN/Bluetooth/3G SIM |

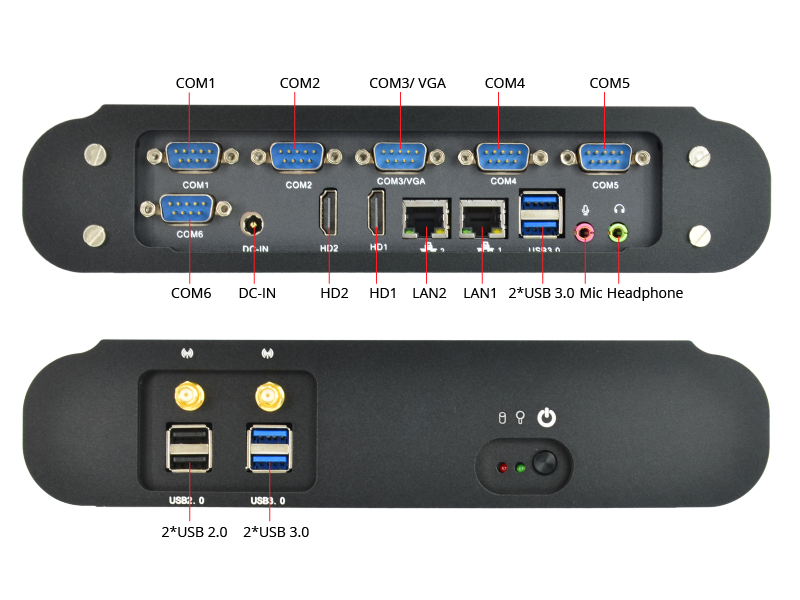

| I/O Interfaces | |
| USB |
2 x USB 2.0 (Front) 2 x USB 3.0 (Front) 2 x USB 3.0 (Back) |
| COM | 6 x RS232 (4 Back+2 Front) (COM2 has RS485 option, COM3 has VGA option) |
| Display | 2 x HDMI |
| Network | 2 x RJ45 10/100/1000Mbps LAN |
| WLAN | Optional |
| Audio | 1 x Headphone, 1 x Microphone |
| Power Supply | DC IN |
| Mechanical | |
| Power | Adapter 12V/5A 60W |
| Cooling | Fanless, passive cooling |
| LED Light | Power LED, HDD LED |
| Button | Power button |
| Dimension | 187 x 111 x 50mm (L x W x H) |
| Mounting | VESA mount (optional) |
| Environmental | |
| Operating Temp. | 0°C~50°C (industrial grade components) |
| Storage Temp. | -20°C ~70°C |
| Relative Humidity | 5%~95% (non-condensing) |
| Others | |
| BIOS | AMI BIOS |
| Operating System | Windows 7/8/10 |
| Package & Accessories | |
| Weight | 2kg |
| Dimension | 270 x 230 x 90mm |
| Accessories | 1 x Adapter, 1 x Power cable |
