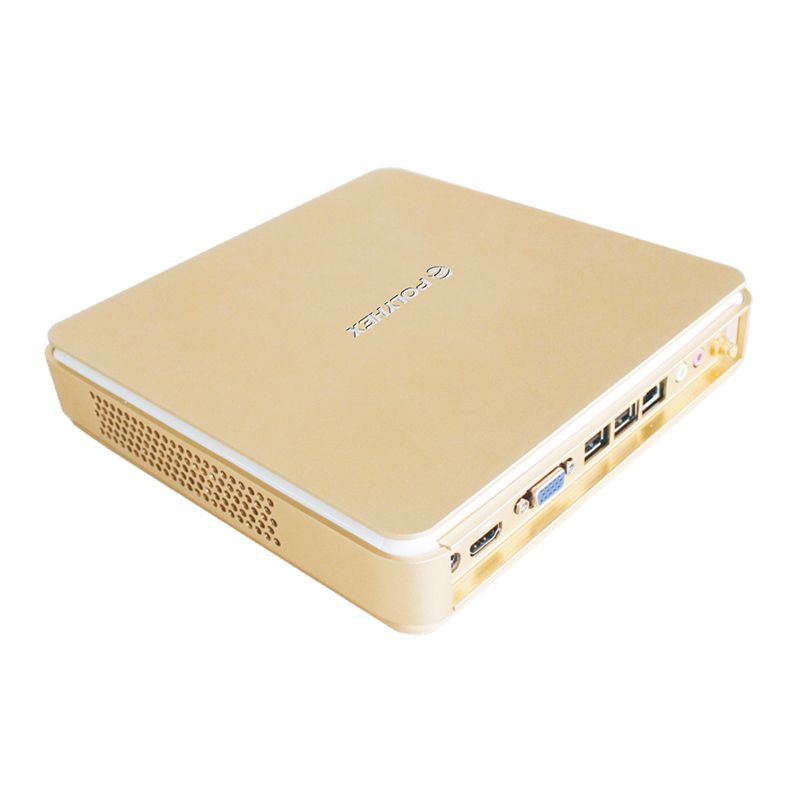

H81 Based Mini Box PC, Supporting Intel ®4th Gen. Haswell Desktop LGA1150 i3/i5/i7

Key Features

  • Onboard LGA1150 socket, supporting Intel® 4th Gen. Haswell i3/i5/i7 processors
  • H81 chipset
  • 1*SO-DIMM DDR3L MHz slots up to 8GB RAM
  • Storage: 1*SATA3.0, 1*mSATA
  • Support dual independent display via VGA and HDMI 1.4
  • Rich I/O ports: 2*USB3.0, 4*USB2.0, 1*LAN, 2*Audio, 1*DC jack 190 x 190 x 55mm
Based on H81 chipset, the BP-MH81 is a small form factor box PC. Onboard with LGA1150 socket, it supports Intel 4th. Gen. Haswell Core i3/i5/i7 processors. Customers can install the right CPU according to their specific requirements. It carries one DDR3 SODIMM 204 Socket, maximum up to 8GB of memory to add higher bandwidth and lower latencies for processes, and features one mSATA and one SATA3.0 socket for SSD and hard disk storage. This box PC has 1 x HDMI 1.4 and 1 x VGA ports for dual independent display. It also has rich I/O interfaces as 2 x USB3.0, 4 x USB2.0, 1 x LAN, 2 x Mic in and 2 x Line out. With aluminum enclosure, this computer has better cooling system. These combined features make this system be capable of complicate computing or daily application, bringing more possibilities for digital signage, IOT, security, industrial automation, education, office and so on.
CPU LGA1150 socket, supporting Intel 4th Gen. Haswell i3/i5/i7 processors
Chipset H81
System Memory 1 x SO-DIMM slot supports DDR3 up to 8GB RAM
Ethernet 1 x GbE LAN
Storage 1 x SATA3.0; 1 x Full-size Mini-PCIe (for mSATA)
Expansion 1 x Half-size Mini PCIe( for WIFI or 3G network)
Power Supply 1 x DC IN 12V
Display Interface 1 x VGA, 1 x HDMI 1.4
USB 2 x USB3.0, 4 x USB2.0
Audio Mic in, Line out
Wake on LAN Yes
Enclosure Material 100% Aluminum
Cooling System Fan
Mounting Option
Color Golden
Operating Temperature -20℃~65℃
Dimension 190mm x 190mm x 55mm
Weight 0.96kg
Package Weight 2.16kg
