BPC-IH310D-1NBW
Cloud Terminal Based on Intel H310 Chipset, Coffee lake/Kabylake/Skylake-S CPU
Key Features
- Intel Coffee lake/Kabylake/Skylake-S series processors
- Support DDR3 SO-DIMM memory up to 8GB
- 4 x USB 3.0 + 4 x USB 2.0

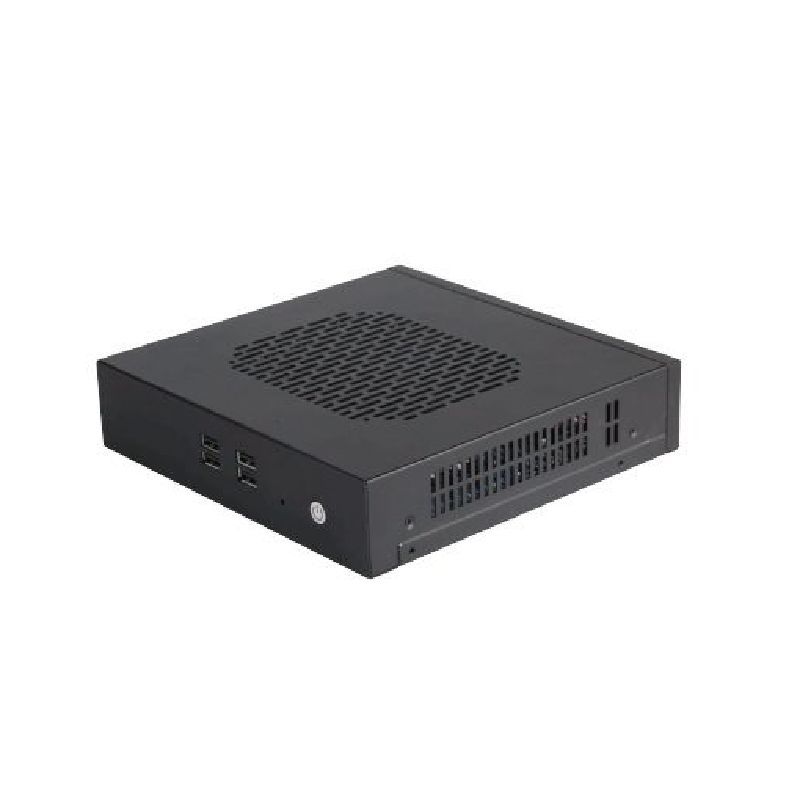

Cloud terminal BPC-IH310D-1NBW is based on Intel H310 chipset, and it supports Intel Kabylake-S & Skylake-S & Coffee lake series CPU. It supports DDR3 SO-DIMM memory up to 8GB and 4K@60Hz HD display, can be widely used in medical industry, intelligent interaction, outdoors advertisement and retailing.
| System | |
| Processor |
Intel 6th Gen. Skylake-S series processors Intel 7th Gen. Kabylake-S series processors Intel 8th Gen. Coffee Lake-S series processors |
| Chipset | Intel H310 Chipset |
| Memory | 1 x DDR3 SO-DIMM, up to 8GB |
| Storage |
SATA: 2 x SATA 3.0, support 2.5# HDD&SSD (optional) mSATA: 1 x M.2 slot, support PCIe 2X SSD |
| Network | |
| Network Card | Realtek RTL8111H Gigabit network, support Wake-on-LAN and PXE |
| Network Interface | RJ45 |
| WIFI | Built-in M.2 2230 WIFI slot (WIFI/BT) |
| Video & Audio | |
| Graphics | CPU Integrated Graphics |
| HDMI 1.4 | 1 x HDMI 1.4, Max. resolution up to 4096 x 2304@24Hz |
| VGA | 1920 x 1080@60Hz |
| Audio Interface | Realtek ALC662 HD Audio, MIC-In, Audio-Out |
| Power Amplifier | Onboard power amplifier, support 3Ω 5W speaker (default) |
| Rear I/O | |
| DC In | 1 x 12V & 19V DC-In (2.54mm) |
| USB | 4 x USB 3.0 |
| Ethernet | 1 x RJ45 |
| HDMI | 1 |
| VGA | 1 |
| WIFI | 2 (Optional) |
| Front I/O | |
| Power Button | 1 (with power indicator) |
| USB | 4 x USB 2.0 |
| LED | 1 x HDD LED |
| Mechanical & Environment | |
| Dimension | 190 x 190 x 42.5mm |
| Case Material | Iron |
| Temperature | 0~40℃ |
| Relative Humidity | 95% @40℃ (non-condensing) |
