PPC-IJ1900-152

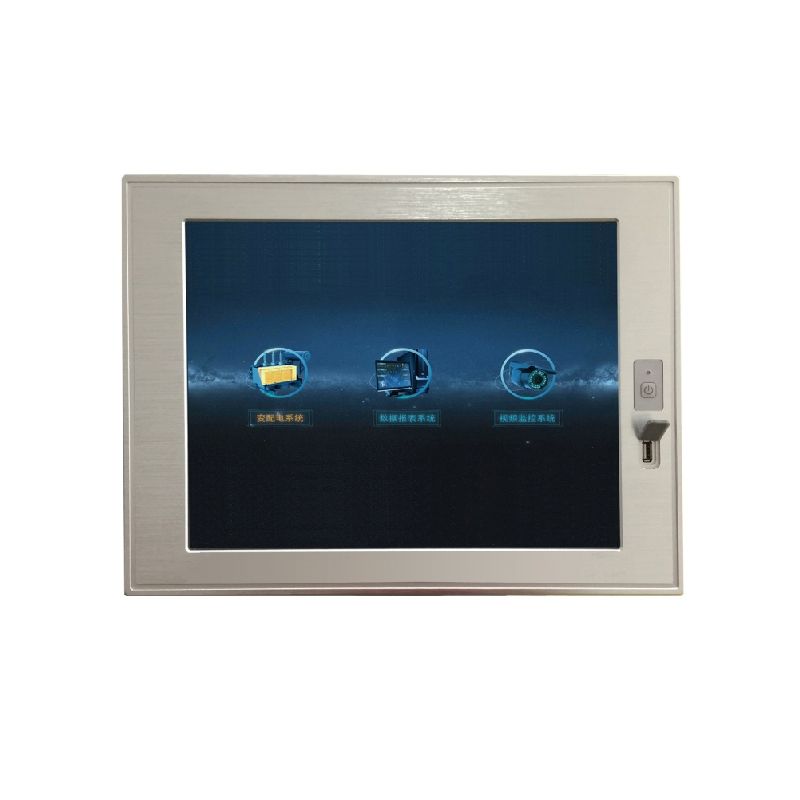

15 Inches Industrial Grade Resistive Touch Panel PC Based on Intel Celeron J1900
Key Features
| System | |
| CPU | Intel Celeron J1900 quad core processor, clock speed 2GHz, turbo 2.41GHz |
| Memory | 2GB/4GB/8GB DDR3 |
| Hard Disk Drive | SSD: 32GB/64GB/128GB/256GB optional; Mechanical hard disk: 500GB/1T optional |
| I/O Ports | 5 x COM (RS232), 1 x COM (RS485), 2 x network (4 x USB 2.0, 1 x USB 3.0), 1 x HDMI, 1 x VGA, 1 x DC-12V, Audio, ON/OFF |
| OS | Win 7, Win 8, Win 10 (XP system optional) |
| Display | |
| Screen | Original A type TFT-LCD |
| Dimension | 15 inches (4:3) |
| Display Area | 304.128 (W) x 228.096 (H)mm |
| Max. Resolution | 1024 x 768p |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1500:1 |
| Reaction Time | 20/15 ms |
| Operational Frequency | 60Hz |
| Total Color | 16.2M |
| Viewing Angle | Full view 89/89/89/89 (Typ.) |
| Touch Screen | |
| Touch Screen | 5-wire resistive touch screen |
| Controller Brand | eGalax_eMPIA Technology Inc. (EETI) |
| Structure | ITO film + ITO glass |
| Operational Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ |
| Click Lifetime | >1 million times |
| Reaction Time | ≤10ms |
| Transmittance | ≥85% |
| Operating strength | 40g~150g |
| Operational Voltage | ≤10V |
| Connection Port | FPC |
| Linear | ≤5% |
| Surface Hardness | ≥3H (pen) |
| Power Supply | |
| Brand | Huntkey |
| Input | 100-240V AC 50/60Hz |
| Output | 12V-24V |
| Power Consumption | 35W |
| Standby Power Consumption | ＜3W |
| Mechanical & Environmental | |
| Operational Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ |
| Relative Humidity | 0%~95% |
| Dimension | 393.4 (W) x 293.0 (H) x 60.1 (D)mm |
| Mounting | 373.8 (W) x 272.7 (H) x 54.1 (D)mm |
| Weight | 4.0kg |
