PPC-J1900HN-190

19” AIO Industrial Computer Based on Intel Celeron J1900/i3/i5/i7 Processor

Key Features

Processor Intel Celeron Processor J1900(2M Cache, up to 2.42 GHz)(default), i3/i5/i7 optional)
Graphics Intel HD Graphics
RAM RAM 4GB DDR3(8G optional)
Storage SSD 64GB(128GB/256GB optional)
Operating System Windows 7/8/10
Display 19 " Capacitive Touch Screen
1280 x 1024P
1 x VGA, 1 x HDMI
Audio 1 x Output Interface/1 x Input Interface(3.5mm)
Mini_PCIe 1 x mPCIe(supports MSATA)
1 x mPCIe(supports Wifi 3G/4G/GPS)

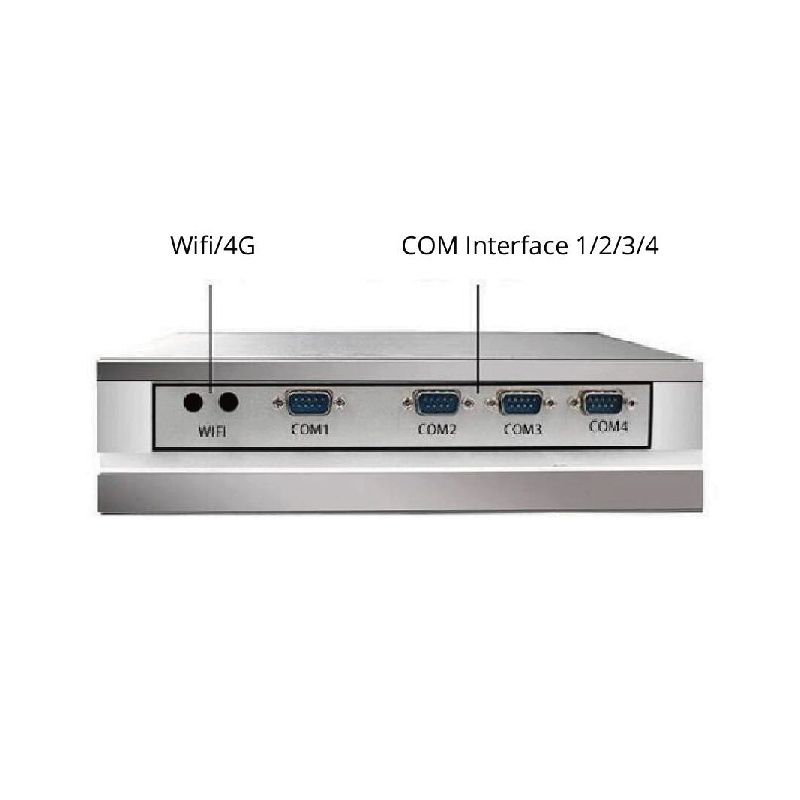

Serial Ports 3 x RS232, 1 x RS485
USB 3 x USB2.0, 1 x USB3.0
Power Input DC12V 5A(17V-40V optional)
Network & Wifi Onboard Realtek 1000M Network Card(Dual network interfaces and Wifi available)
1 x LAN
Board Dimension 170 x 170mm
Operating Temperature -10℃~55
Storage Temperature -20-70
Operating Humidity 0%~95% No Condensation
Weight 4.0kg
