11.6 Inches POLYTAB

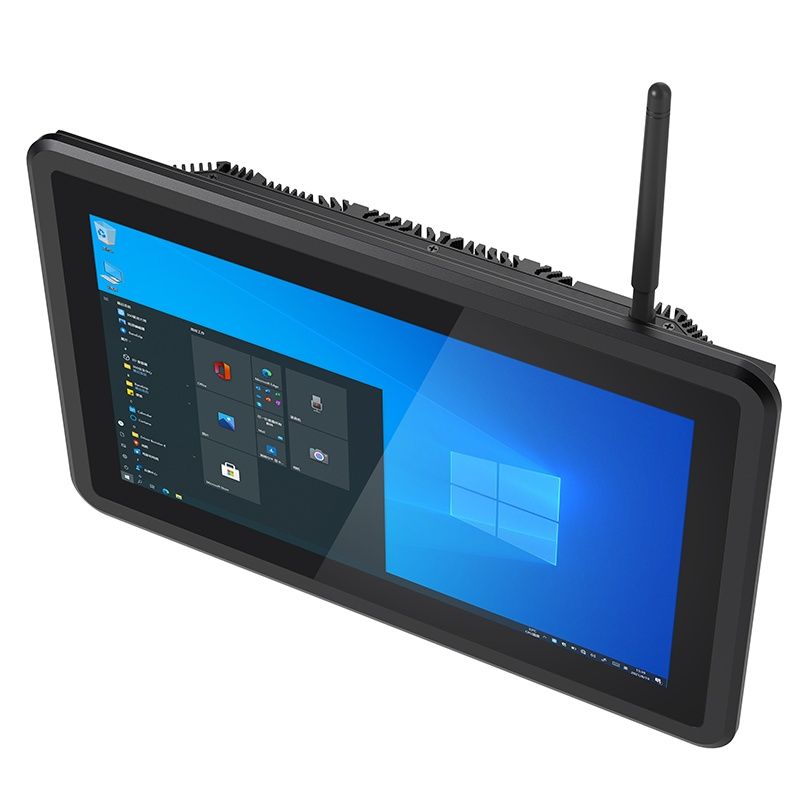

POLYTAB 11.6" Fanless Industrial Touch Panel PC, Intel Core i5-1235U
Key Features
- 12th Gen Intel Core i5-1235U, 10 cores up to 4.4GHz with onboard LPDDR5
- 11.6" 10-point capacitive touch, fanless aluminum chassis, -20°C~60°C
- Dual Gigabit Ethernet, 4x USB 3.2 Gen2, 2x HDMI 2.0, 2x RS232
- Triple M.2 slots (B/M/E) for SSD, 4G, WiFi&BT expansion
- Modular design: display and computing unit separable
- 9V~36V wide voltage input, VESA mounting, Win10/11 & Linux
Related Products: 10.1 inches POLYTAB; 15.6 inches POLYTAB
POLYTAB 11.6" is a fanless modular industrial touch panel powered by 12th Gen Intel Core i5-1235U with onboard LPDDR5 memory. The full aluminum chassis operates reliably from -20°C to 60°C. Features 10-point capacitive touch, dual Gigabit Ethernet, quad USB 3.2 Gen2, dual HDMI, dual RS232, and triple M.2 slots for flexible expansion. Wide 9V-36V DC input with Phoenix connector. Display and computing unit are separable for easy upgrade. Ideal for HMI, CNC, automation, and environmental monitoring. Supports Windows 10/11 and Linux.
| System | |
| CPU | Intel Core i5-1235U, 10 cores (2 P-cores with up to 4.4GHz, 8 E-cores up to 3.3GHz), 12 threads, and 12MB Intel Smart Cache |
| Memory | Onboard LPDDR5-5200Mb/s, 8GB/16GB |
| Storage | UFS Flash support (optional) |
| BIOS | AMI UEFI BIOS |
| Operating System | Win10/11 64bit, Linux 64bit |
| Video and Audio | |
| Display | 11.6 inch 1366 x 768 10-point capacitive touch panel |
| Audio | SenaryTech SN6186 High-definition Audio Codec |

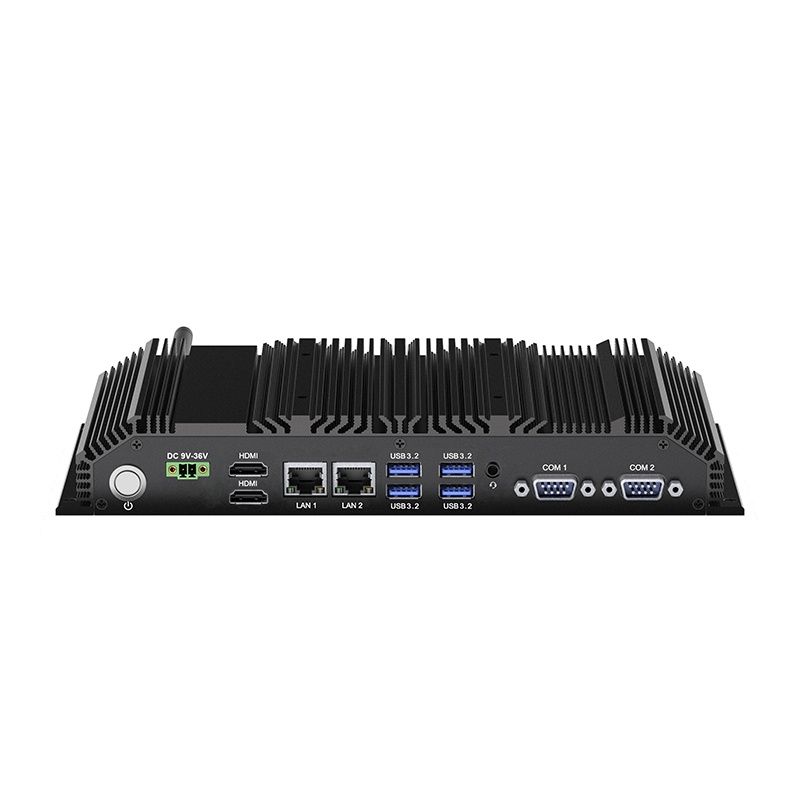

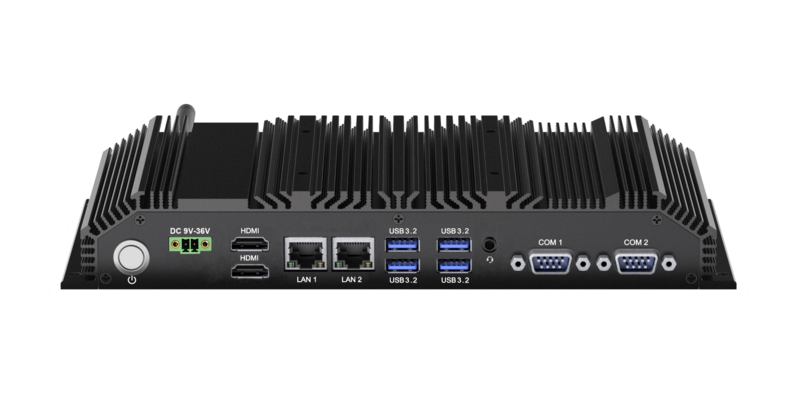

| Front I/O | |
| Power Switch | 1 x Power Switch |
| Audio | 1 x CTIA 2-in-1 Audio Jack, supports Line-out + Mic-in and power amplifier |
| Ethernet | 2 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps) |
| USB 3.2 | 4 x USB 3.2 Gen2 10Gbps |
| Display | 2 x HDMI2.0 |
| Power Supply | 1 x DC-IN (2-pin Phoenix Connector) |
| COM | 2 x RS232 (COM1-2) |

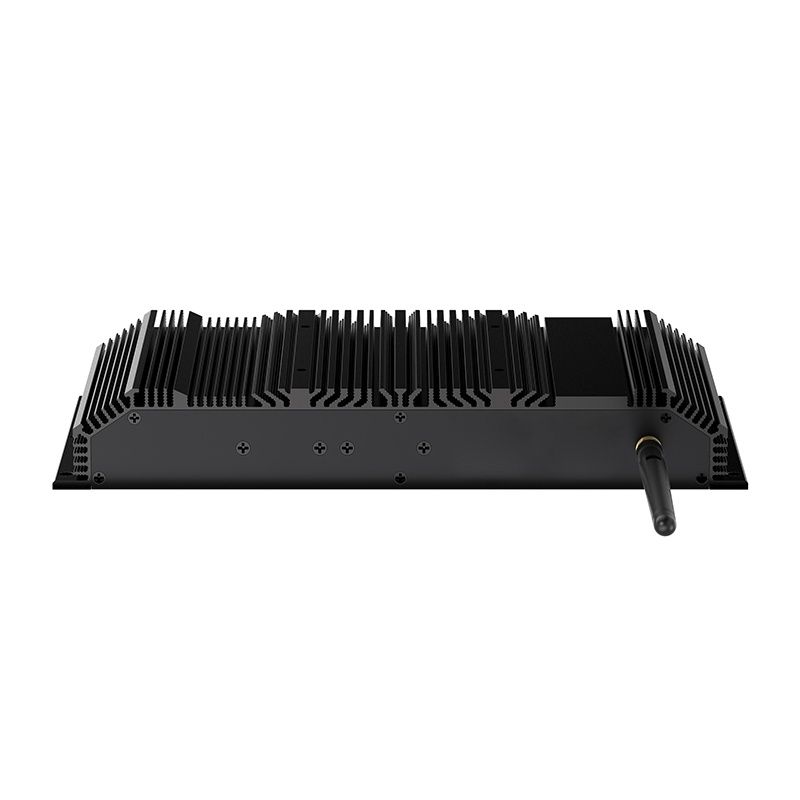

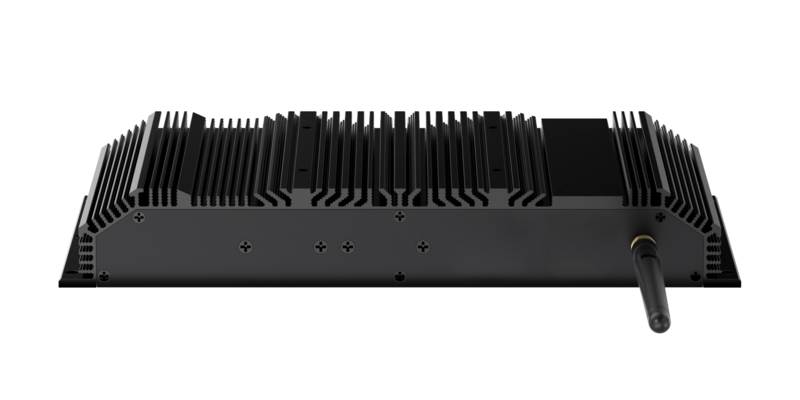

| Rear I/O | |
| Antenna Hole | 1 x antenna hole for WiFi and BT external antenna |
| Internal Interfaces | |
| M.2 |
1 x M.2 Key B slot for 2242/2280 SATA SSD/3042 4G Module
1 x M.2 Key M slot for 2280 NVMe SSD
1 x M.2 Key E slot for 2230 Wi-Fi and BT Module, supports PCIe and CNVi
|
| SATA | 1 x SATA3.0 FPC interface |
| Slot | 1 x Micro SIM card slot |
| Power Supply & Functions | |
| Power Adapter | 9V-36V; 2-pin DC-IN Phoenix Connector |
| Auto Power On | Support |
| Wake On LAN | Support |
| Mechanical and Environmental | |
| Material | Aluminum alloy (Blue and Black color for options) |
| Dimension | 261 x 136 x 39mm |
| Cooling | Cooling fin, fanless |

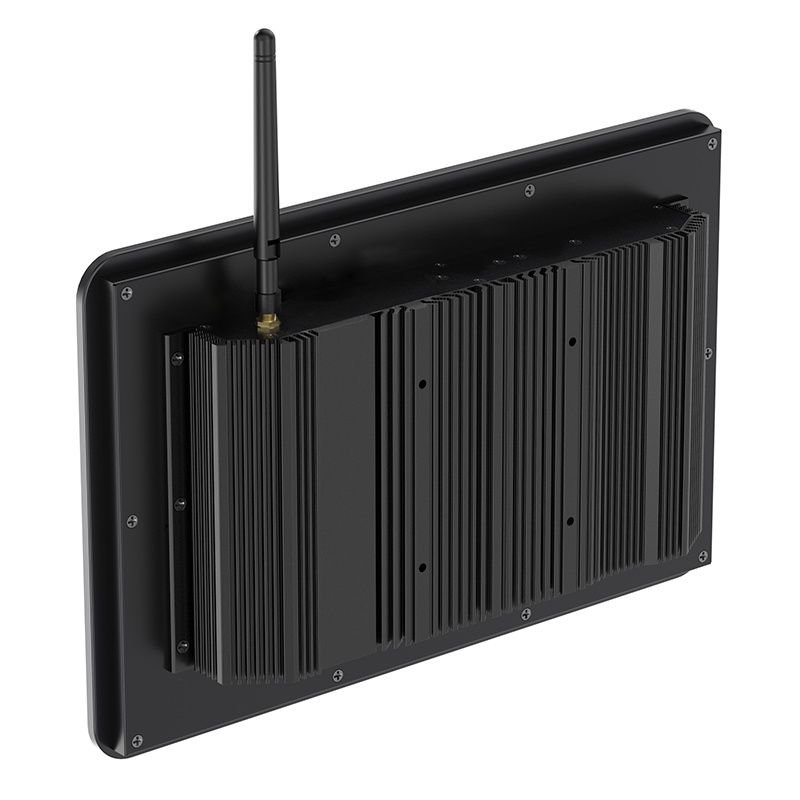

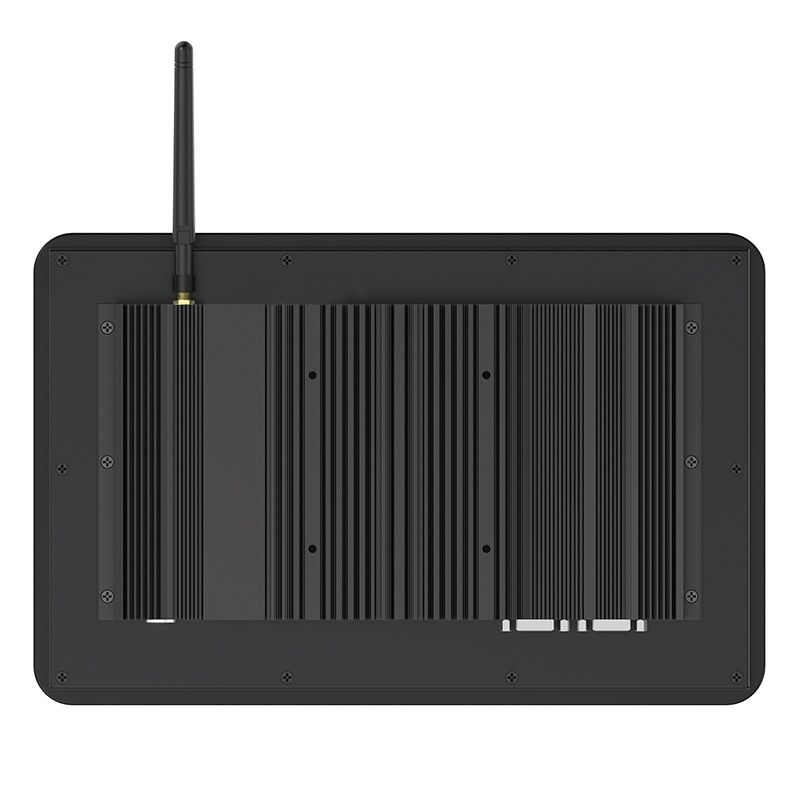

| Mounting | VESA mounting |
| Operating Temp. | -20℃ to 60℃ |
| Storage Temp. | -40℃ to 80℃ |
