BPC-IALNQD-01
Fanless Mini Box PC Powered by Intel® Alder Lake-N / Twin Lake-N processors
Key Features
- Intel Alder Lake-N / Twin Lake-N processor with fanless passive cooling for silent, maintenance-free operation
- Dual Realtek 2.5G Ethernet ports for high-speed network and soft routing applications
- DDR5 SO-DIMM memory up to 48GB with triple M.2 expansion for SSD / 4G / 5G / Wi-Fi
- Rich industrial I/O: 2× HDMI, 8× USB, 2× RS-232/RS-485 serial ports
- Wide operating temperature 0°C ~ 50°C in rugged aluminium alloy chassis with VESA mounting
- Compact 178×111×52mm footprint, ideal for space-constrained industrial and edge deployments
BPC-IALNQD-01 is a fanless industrial mini PC powered by Intel Alder Lake-N / Twin Lake-N processor, designed for embedded and edge computing applications where thermal constraints, silent operation, and compact form factor are critical. It features dual Realtek 2.5G LAN, dual HDMI, 8× USB, and dual RS-232/RS-485 serial ports for versatile industrial connectivity. DDR5 memory up to 48GB and triple M.2 expansion (SSD / 4G / 5G / Wi-Fi) provide excellent scalability, while the rugged aluminium alloy chassis supports wide operating temperature of 0°C ~ 50°C and VESA mounting for demanding environments.
Ideal for industrial automation, IoT edge gateways, digital signage, network security appliances, thin clients, and embedded control systems.
Supports UEFI Windows 10 and Linux operating systems
| System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| Memory | 1 x DDR5 SO-DIMM Socket (Up to 48G) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x M.2 M key 2280 for SSD (PCIe3.0 x 1) |
| Watchdog | Yes |
| OS | UEFI Windows10, UEFI Linux |

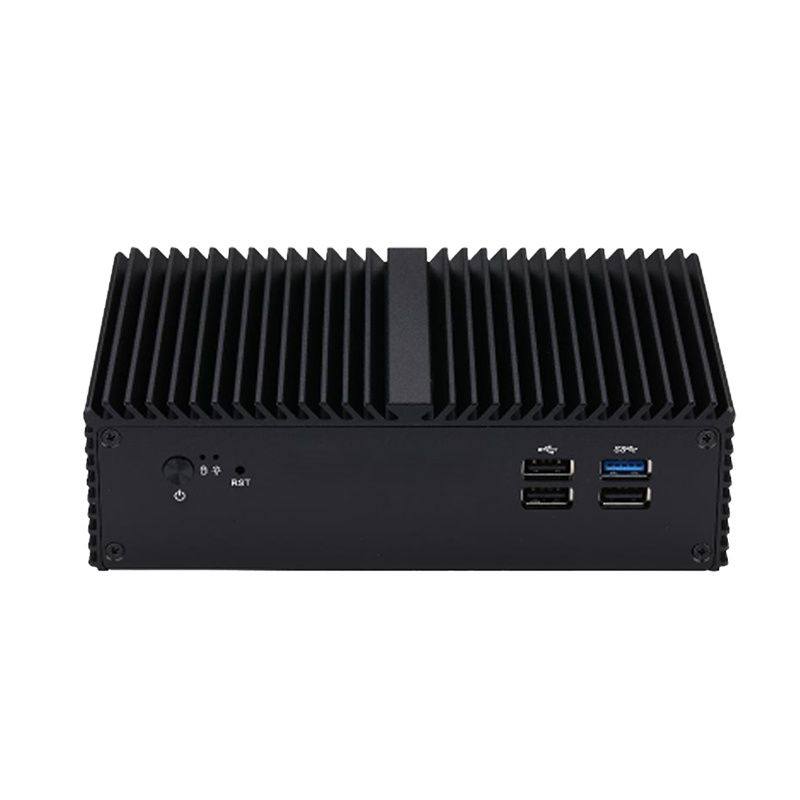

| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 3 x USB2.0, 1 x USB3.0 |
| Serial Port | 2 x RS232 (COM1/2 can be set as RS485) |

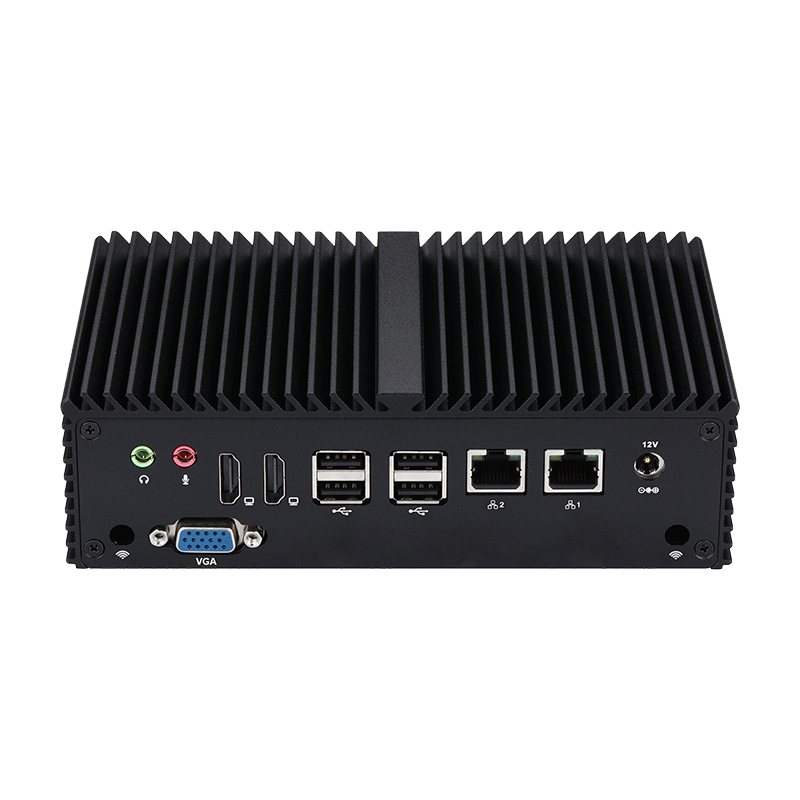

| Rear I/O | |
| Power | 1 x DC Jack |
| LAN | 2 x Realtek 2.5G LAN |
| USB | 4 x USB2.0 |
| Display | 2 x HDMI |
| Audio | 1 x Mic-in, 1 x Line-out |
| Expansion | |
| M.2 |
1 x M.2 M key 2280 for SSD (PCIe 3.0 x 1)
1 x M.2 B key 3042/3052 for 4G/5G (5G Mode Requires Customization)
1 x M.2 E key 2230 for WiFi
|
| GPIO | 1 x GPIO (2 x 5-pin, 2.0mm pitch) |
| SIM Card Slot | 1 x SIM card slot |
| Clear CMOS Jumper | Yes, 1 x 3-pin, 2.54mm pitch |
| AutoStart Jumper | Yes, 1 x 3-pin, 2.54mm pitch |
| Front Panel Header | 1 (2 x 5-pin, 2.0mm pitch) |
| Power Supply | |
| Power Input | 12V/3A, 5.5mm x 2.5mm DC Jack |
| Mechanical & Environmental | |
| Operating Temp. | 0℃ to 50℃ |
| Storage Temp. | -20℃ to 80℃ |
| Humidity | 10% to 90% |
| Material | Aluminium Alloy |
| Dimension | 178 x 111 x 52mm |
| Weight | 0.78kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 x 218 x 75mm |
| Cooling System | Passive Cooling (Fanless Design) |
