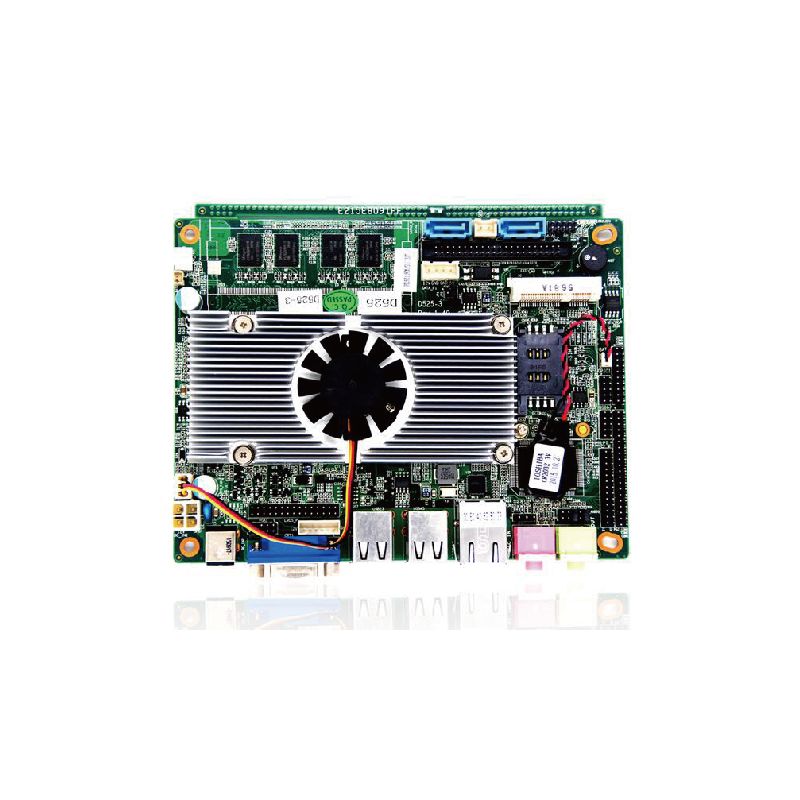

EMB-I525P-351
3.5" Embedded Motherboard Based on Intel Atom D525/N455/N550/N475 CP
Key Features
- Onboard CPU, supports Intel Atom D525/N455/N550/N475
- Realtek RTL8111E Chipset
- Onboard 2GB DDR3 memory, SO-DIMM 204DDR3 max up to 4G
- 1 x Gigabit Ethernet LAN
- Supports RGB, CRT, LVDS and VGA output
| CPU | Intel Atom D525/N455/N550/N475 |
| Chipset | Realtek RTL8111E |
| RAM | Onboard 2GB DDR3 |
| SO-DIMM 204DDR3 max up to 4GB | |
| LAN | Onboard 1 x Gigabit Ethernet LAN |
| AUDIO | Onboard HDA ALC662(MIC-IN/LINE-OUT) |
| VIDEO | RGB |
| CRT | |
| LVDS | |
| VGA | |
| Expansion Sockets | 1 x Mini-PCIE socket |
| 1 x Mini-SATA socket | |

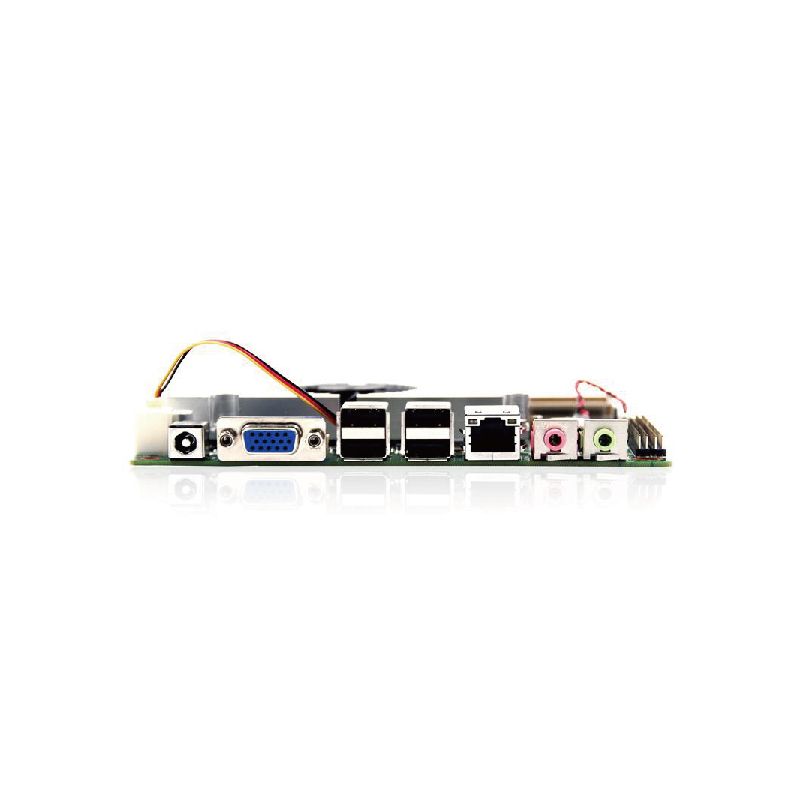

| I/O | 2 x SATA 2.0 port |
| 6 x USB 2.0 port | |
| 5 x RS232 | |
| 1 x RS485 | |
| 8 x GPIO | |
| Power Supply | DC 12V（+/-2V） |
| Working Environment | Working Temp：-10~60℃ |
| Storage Temp：-40~85℃ | |
| Size | 154.8 x 117.4mm |
