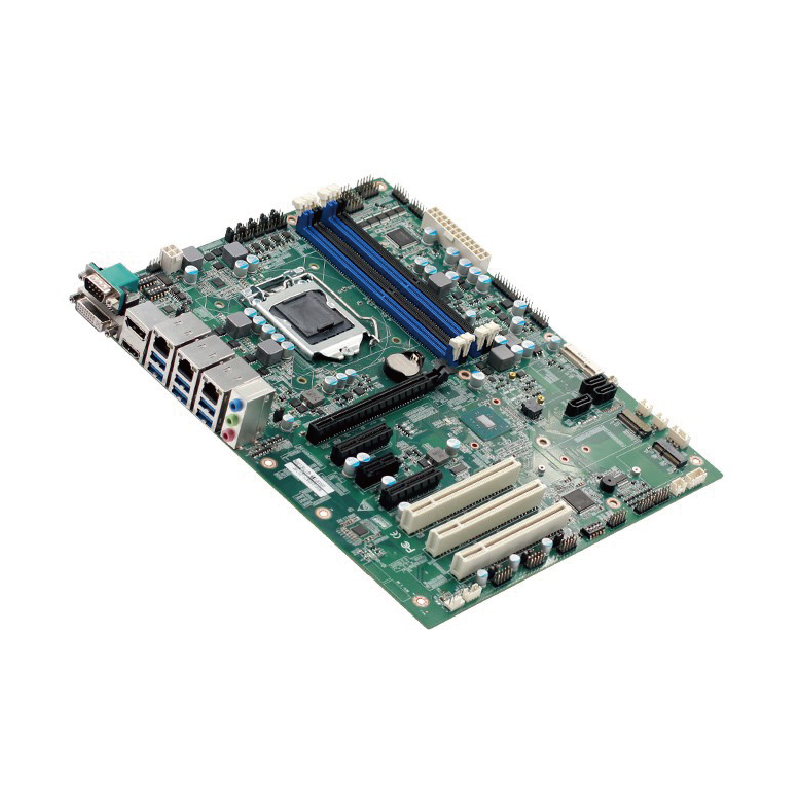

EMB-IQ170P-A26
ATX Motherboard Based on Q170 Chipset, Supporting LGA1151 Intel 6th/7th Gen. Core (i3/i5/i7)/Pentium/Celeron CPU
Key Features
- Support LGA1151 Intel 6th/7th Gen. Core (i3/i5/i7)/Pentium/Celeron CPU, high-speed Q170 chipset
- 4 x DDR4 memory slots, dual-channel, 2133MHz
- 1 x VGA, 1 x HDMI, 1 x DP, 1 x DVI (support triple display, HDMI and DP support 4096 x 2304 4K display output)
- 1 x PCIe X16, 2 x PCIe X4, 1 x PCIe X1, 3 x PCI
- Support Intel AMT active management technology (CPU and I219-LM network card supporting Vpro are required)
- ATX power supply
| System | |
| CPU | Intel 6th/7th Gen. Core, Pentium, Celeron series processors |
| CPU Slot | LGA1151 |
| Chipset | Q170 |
| BIOS | EFI BIOS |
| Memory | Dual-channel DDR4 2133/2400MHz, 4 x DDR4 slots, up to 64GB |
| Storage | 4 x Standard SATA III, Max. transmission rate 6Gb/s |
| OS | Windows 7, Windows 10, Linux |
| Video & Audio | |
| Graphics | Intel HD Graphics 630 (GPU model depends on the CPU selected) |
| VGA | 2 x 6, 2.54mm pin headers, Max. resolution up to 2048 x 1536@50Hz |
| HDMI | HDMI 1.4, Max. resolution up to 4096 x 2304@24Hz |
| DP | Max. resolution up to 4096 x 2304@60Hz |
| DVI | Max. resolution up to 1920 x 1200@60Hz |
| Triple Display | Support three-screen synchronous or asynchronous display |
| Audio | Realtek HD ALC269Q-VB (LINE-OUT + MIC-IN + LINE-IN + SPKOUT) |
| Network | |
| Controller | 2 x Intel I211AT Gigabit Ethernet, 1 x Intel I219-LM Gigabit Ethernet |
| Rear Panel I/O | |
| Interface | 1 x DP, 1 x HDMI, 1 x DVI, 3 x LAN, 6 x USB 3.0, 1 x MIC-OUT/LINE-OUT/LINE IN |
| I/O Interfaces | |
| USB | 6 x USB 3.0, compatible with USB 2.0/1.1, 6 x USB 2.0, up to +5V/1.5A |
| Serial Port | COM 1 has RS232/RS485/RS422 (DB9) options through DIP switch and BIOS setting, COM 2, 3, 4, 5, 6 have RS232/RS485 (pin header) options through jumper and BIOS setting |
| Printer | 1 x LPT |
| PS/2 | 1 x PS/2 (pin header interface) |
| GPIO | 2 x 8bit, routine provided, self-defining input/output, 5V@24mA electrical level |
| Super I/O Controller | NCT6106D |
| Expansion Bus | |
| Mini-PCle | 1 x Mini-PCIe slot, support PCIe devices |
| PCIe | 1 x PCIe X16, 2 x PCIe X4, 1 x PCIe X1 |
| PCI | 3 x PCI slots |
| M.2 | 1 x Key M: 2242/2260/2280 SATA bus interface, 1 x Key E 2230 interface (WIFI) |
| Function | |
| Watch Dog Timer | 0-255s, watch dog routine provided |
| Power Supply | |
| Type | ATX power supply |
| Mechanical & Environment | |
| Dimension | 305 x 244mm |
| Weight | 0.5KG |
| Operating Temp. | -20 ~+60℃ |
| Storage Temp. | -40 ~+85℃ |
| Operating Humidity | 0%~90%, non-condensing |
| Storage Humidity | 0%~90%, non-condensing |
| Certification | |
| Certificates | CE, RoHS, FCC |
Order Information:
| Model No. | Description | CPU |
| EMB-IQ170P-A26 |
Chipset: Intel Q170 CPU Slot: LGA 1151 Memory Type: 4 x DDR4 Slots |
CPU Options: Intel 6th/7th Gen. Core (i3/i5/i7)/Pentium/Celeron CPU |
Packing List:
| 1 x I/O Back Panel | |
| 1 x Driver CD | |
| 1 x SATA | |
| 1 x SATA-P Cable |
