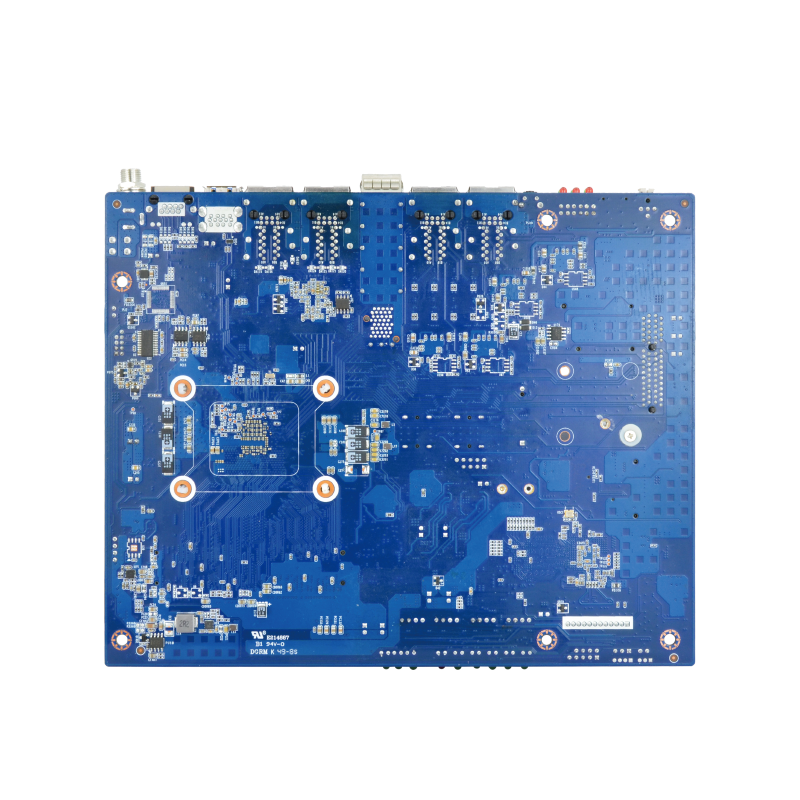

EMB-IC3758DS-MA101
Micro ATX Motherboard Based on Intel C3758 8 Cores 8 Threads CPU
Key Features
- Onboard Intel C3758 CPU
- 8 x 1000M Network
- 2 x SFP + 10G Network
- 2 x SAS Standard Storage Interface (Up to 6 x SATA 3.0)
- Support 5G Expansion
EMB-IC3758DS-MA101 is based on Intel C3758 processor, supporting 8 x Intel 1,000M network and 2 x 10G network. With expansion up to 6 x SATA 3.0, it also supports 4G/5G module, can be applied in devices such as intelligent network gateway, SD-WAN and small server, etc.
| System | |
| CPU | Intel C3758, 2.2GHz, 8 Cores, 8 Threads |
| Intel C3858, 2.0GHz, 12 Cores, 12 Threads (optional) | |
| Memory | Dual-channel SO-DIMM DDR4 2400, up to 64GB |
| Storage | SATA: 2 x SAS standard storage interface (up to 6 x SATA 3.0) |
| Mini PCIe: Support mSATA SSD | |
| Operating System | Windows Server, Linux/Centos |
| Display | |
| Core | ASPeed AST2510 Core (optional) |
| Output Interface | VGA |
| Network | |
| Network | 4 x Intel I211AT 1,000M network card |
| 1 x Intel I350 network (4 x 1,000M network) | |
| 2 x SFP + 10G network | |
| Other Interfaces | |
| USB | Rear Interface: 1 x USB 3.0 + 1 x USB 2.0 |
| Built-in: 2 x USB 2.0 (pin header) | |
| COM | Support 1 x Console (RS232) |
| Expansion | 1 x M.2 KeyA 2230, supports WIFI (optional, share with VGA signal, none for default) |
| 1 x M.2 KeyB 3052, supports 4G/5G module | |
| 1 x PCIe X4 (X1 signal, share with VGA signal, none for default) | |
| 1 x Open Lid Detection (2pin) | |
| 1 x Power On (3pin, hardware auto power on function) | |
| Software | |
| Watch Dog | Support |
| Raid | No Hardware Raid, support Software Raid 0,1 |
| Power Supply | |
| Power Supply | 1 x ATX 4pin |
| 1 x DC-IN 12V | |
| Environment | |
| Operating Temp. | 0~60℃ |
| Storage Temp. | -20~80℃ |
Order Information:
| CPU | 1,000M Network Card | 10,000M Network Card | VGA | SATA | eMMC | mSATA | 5G Slot |
| C3758 2.2GHZ 8C/8T | 8 | 2 | Support | 6 | 32GB/64GB | Support | Support |
| C3858 2.0GHZ 12C/12T | 8 | 2 | Support | 6 | 32GB/64GB | Support | Support |
