EMB-IH310D-MI4
Mini ITX Embedded Motherboard Based on Intel H310 Chipset
Key Features
- Supports 8th/9th Gen Intel Core Processors
- 2 x DDR4 SO-DIMM up to 32GB
- Supports VGA or DP + HDMI Display
- 4 x Intel I211 1000Mbps Independent Network Card
- Supports Intel® Trusted Execution Technology (TXT)
EMB-IH310D-MI4 adopts Intel H310 chipset and supports 8th/9th Gen Intel Core pro- cessors. Designed with rear VGA or DP + HDMI display output and 2 x DDR4 SO-DIMM memory up to 32GB, It meets the needs of public information platforms to become more intelligent. It can be applied to fields such as industrial control, smart education, digital signage, commercial office and security monitoring, etc.
| CPU | 8th/9th Gen Intel Core Processors | |
| Chipset | Intel H310 | |
| RAM | 2 x DDR4 SO-DIMM up to 32GB | |
| Display | GPU | Integrated |
| Storage | Interface | 2 x Standard SATA 3.0 |
| Ethernet | Interface | 4 x Gigabit LAN Controller |

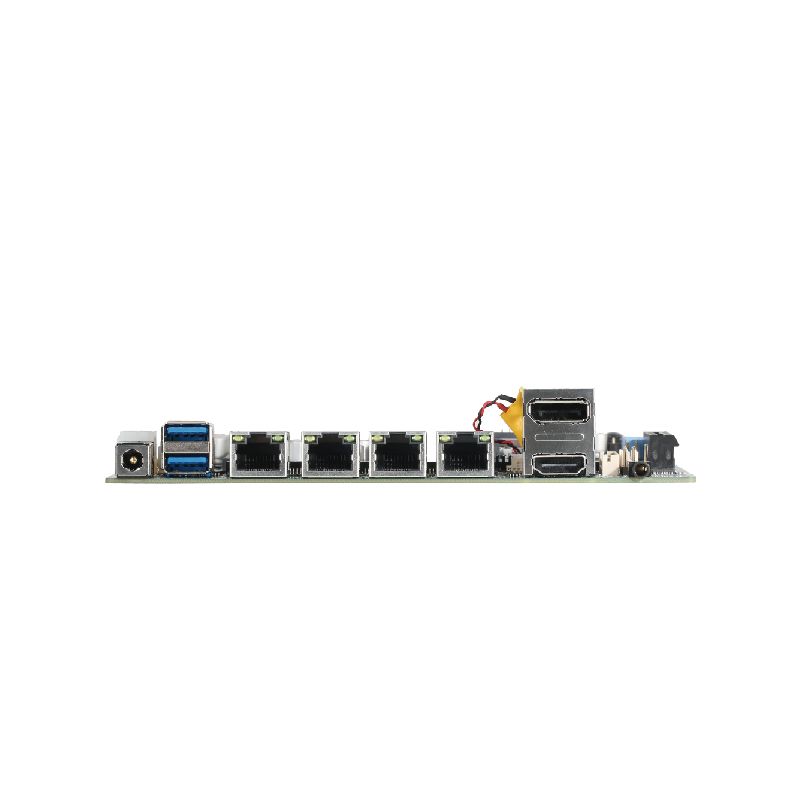

| Rear I/O Interfaces | DC_IN | 12~19V DC IN |
| USB 3.0 | 2 x USB 3.0 | |
| LAN | 4 x 1000Mbps RJ45 | |
| Display | VGA (DP + HDMI optional) | |
| Audio | 1 (Line_Out&MIC Combo) | |
| Front I/O Interfaces | USB 3.0 | 2 x USB 3.0 |
| Power Button | 1 x Power Button with Power LED | |
| Expansion Interfaces | Mini-PCle(Built-in) | 1 x mSATA (same lay with S_SATA1, jumper selection) |
| PCIe x 4 | 1 x Standard Vertical Jack | |
| SATA | 2 x SATA 3.0 | |
| USB | 2 x USB 2.0 Standard Pin | |
| COM | 2 x 2 x 5Pin (2.54mm), supports power supply and jumper selection | |
| M.2 2230 | 1(Supports M.2 2230 WIFI) | |
| VGA Pin | 1 x 12 Pin | |
| GPIO | 1 x 2 x 5 Pin (2.54mm) | |
| Dimension | Form Factor | 170 x 170mm |
| Environment | Temperature | 0~60℃ |
| Humidity | 95% @ 40℃(Non Condensed) | |
| Software Development Kit | Operating System | Windows 8.1/Windows 10/Linux, 32/64 bit |
| Auto Power On | Supports auto power on through hardware control | |
| System Restoration | Supports one-key system restoration | |
