EMB-IJ4125WB-1N
Thin Mini ITX Motherboard Based on Intel Celeron J4125 CPU
Key Features
- Intel Celeron J4125 Quad Core CPU
- Onboard 4 x 8GB LPDDR4 2400 memory, 1 x M.2 SSD storage
- Windows 10 64bit / Ubuntu 16.04LTS
- Gigabit network, 1 x M.2 WIFI & Bluetooth
- 1 x HDMI, 1 x VGA, 1 x MIC, 1 x Audio Line-out
- 4 x USB 3.0

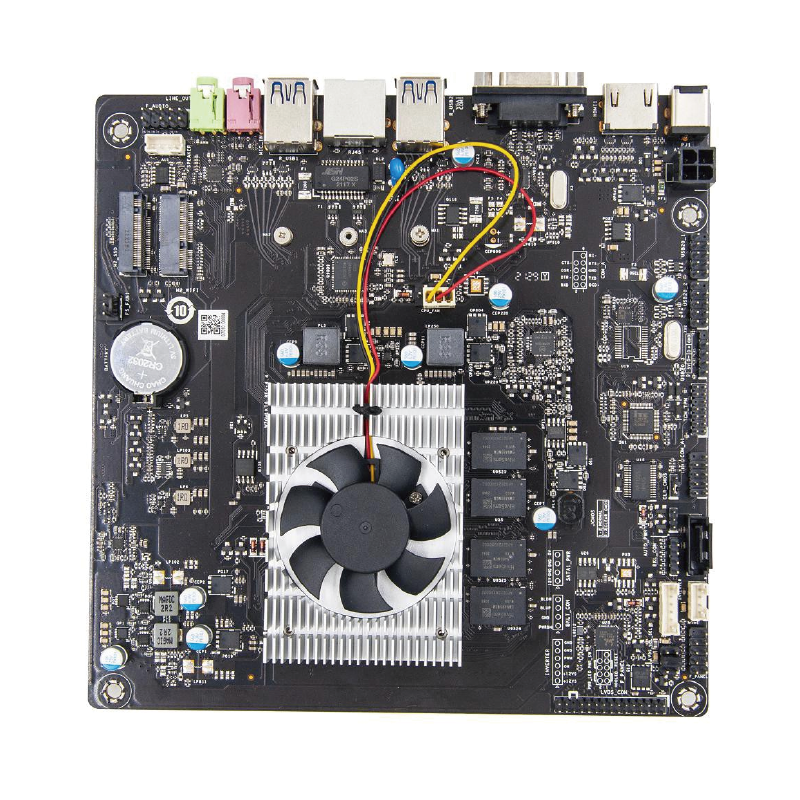

EMB-IJ4125WB-1N is a Thin Mini ITX Motherboard based on Intel Celeron J4125 quad core CPU with 2.0GHz base frequency. Supporting onboard 4 x 8GB LPDDR4 2400 for memory and M.2 SSD for storage, it can be applied in AIO PCs, mini box PCs or consumer PCs.
| System | |
| CPU | Onboard Intel Celeron J4125 Quad Core CPU, 2.0GHz base frequency, 2.7GHz pulse frequency |
| Chipset | SoC |
| Graphics | Intel UHD GRAPHICS 600 |
| Memory | Onboard 4 x LPDDR4 8GB 2400 |
| BIOS | UEFI |
| OS | Windows 10 64bit/Ubuntu 16.04LTS |
| Form Factor | Thin Mini ITX 17cm x 17cm |
| Applicable Products | AIO/Mini Box/Consumer Products |
| I/O Interfaces | |
| LAN | I211-AT Gigabit network |
| Audio | ES8336 supports 2 sound channels |
| M.2 | 1 x M.2 Wi-Fi & Bluetooth, 1 x M.2 SSD (2242 2260 2280) |

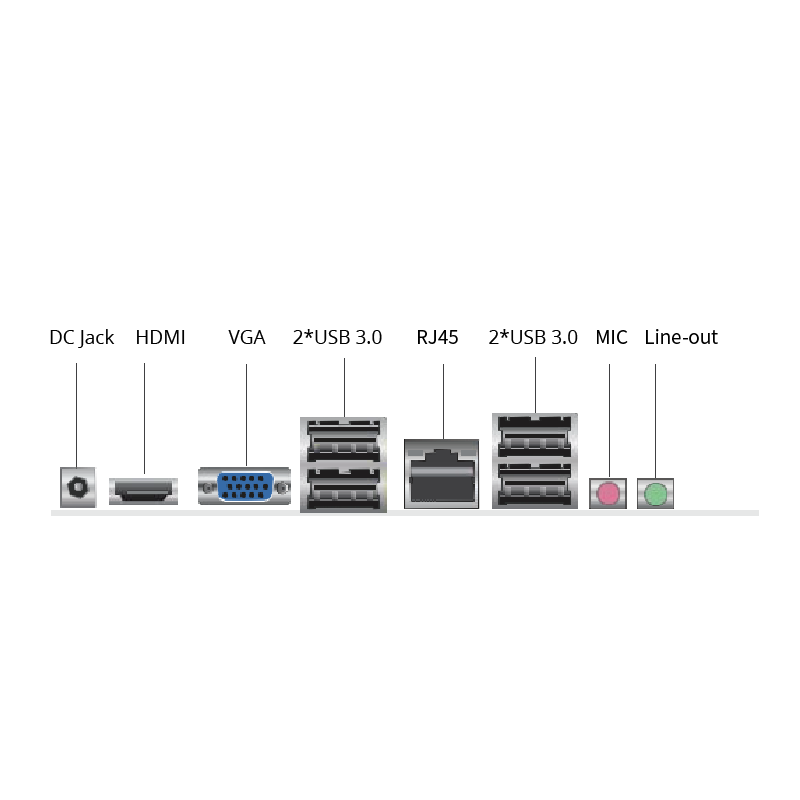

| Rear I/O | 1 x DC Jack |
| 1 x HDMI | |
| 1 x VGA | |
| 4 x USB 3.0 | |
| 1 x RJ45 | |
| 1 x Mic | |
| 1 x Line-out | |
| Internal Pin Header | 1: CPU Fan Header |
| 2: 2.5 x USB 2.0 pin header | |
| 3: Front panel header | |
| 4: F_AUDIO header | |
| 5: SPEAKER | |
| 6: SATA 6GB/s（SATA3） | |
| 7: HDD_PWR header | |
| 8: BKL_CON | |
| 9: INV_VOL_SEL | |
| 10: INVERTER | |
| 11: LVDS_CON header | |
| 12: CLR CMOS | |
| 13: TPM | |
| 14: M.2 SSD | |
