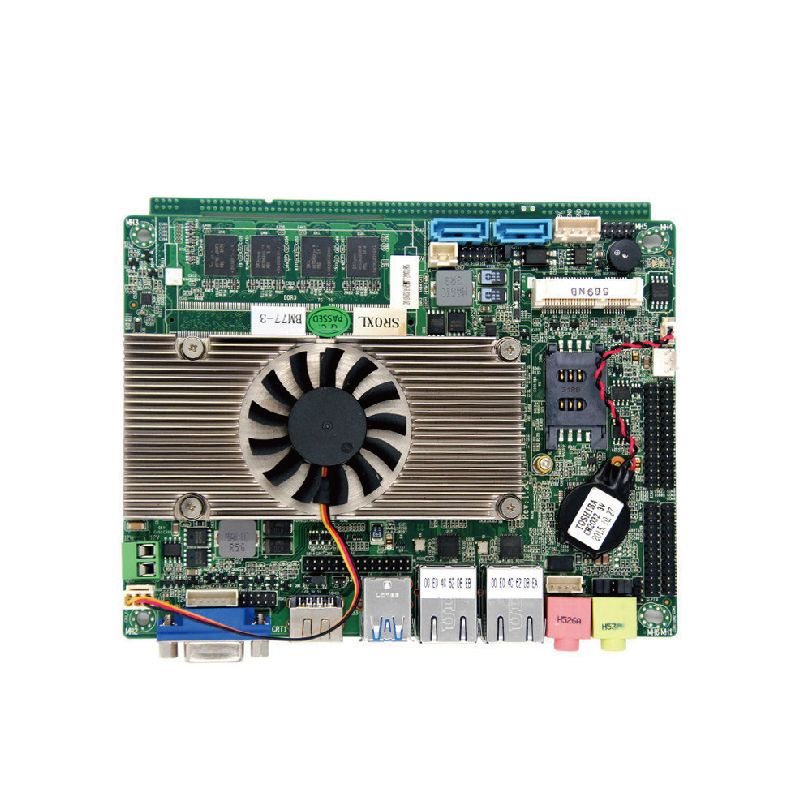

EMB-IHM77UP-352
Industrial Motherboard based on Intel HM77/HM67 Chipset, Supporting Sandy/Ivy Bridge i3/i5/i7 U Series CPU
Key Features
- Based on Intel HM77/HM67 chipest, supporting Intel Mobile Sandy/Ivy Bridge i3/i5/i7 U series CPU
- Onboard 2GB/4GB DDR high-speed memory
- 1 x DDR3 1066/1333/1600MHz SODIMM slot up to 8GB
- Supports HDMI, LVDS and VGA display output
- 2 x Gigabit Ethernet, 1 x Mini PCIe (supports Wifi or 3G/4G module)
- 2 x SATA2.0/2 x USB3.0 /6 x USB2.0 /6 x COM /1 x Mini SATA (supports SSD)/1 x LPT
| Processor System | CPU | Intel® Core™ i3-3217U 1.80GHz |
| Intel® Core™ i5-3337U 1.80GHz up to 2.70GHz | ||
| Intel® Core™ i7-3667U 2.0GHz up to 3.20GHz | ||
| CPU Packaging | BGA | |
| Chipset | Intel® HM77(or HM76) high-speed chipset | |
| BIOS | AMI BIOS | |
| Memory | Technique Architecture | Single channel DDR3 1066/1333/1600MHz |
| Capacity | Integrated 2GB/4GB DDR3 | |
| Slot | 1 slot can be added, maximum memory expansion up to 8GB | |
| Vedio | Graphics | Intel HD Graphics 4000；Graphics card model is related to CPU |
| Dual LVDS | Supports dual channel 24bit output with resolution up to 1920 x 1200 | |
| HDMI | HDMI up to 1920 x 1200 | |
| Dual Display | LVDS + VGA，LVDS + HDMI，HDMI + VGA synchronous or asynchronous display | |
| Back I/O | Interfaces | 1 x VGA，1 x HDMI，2 x LAN，2 x USB3.0/1 x MIC-OUT/LINE-OUT |
| Network | Controller | 2 x RTL8111E-V Gigabit network, RJ45 interface |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watch Dog Timer | 0-255s，provides Watchdog routine |
| Cooler | Aluminum radiator with fan | |
| I/O Interfaces | USB | 2 x USB3.0 compatible with USB2.0 / 1.1，8 x USB2.0，supports up to +5V/1A |
| Serial Ports | 5 x RS-232，1 x RS422/485 optional，RS485 supports automatic flow control | |
| PS/2 | None | |
| GPIO | 8 bit，provides routine, freely defines input/output, 3.3V@24mA electrical level | |
| Expansion Bus | Mini-PCle | 1 x Mini-PCIe slot，supports PCIe and USB devices |
| SMBUS | ||
| Storage | SATA | 2 x SATA II up to 3Gb/s |
| M-SATA | 1 x Mini-PCIe M-SATA Scoket，supports SANDISK Protocol，up to 3Gb/s | |
| Power Supply | Type | Single input DC power supply，DC12V，±5% |
| Power Consumption | 17W（Standby），35W（Regular） | |
| Environment | Operating Temp. | -20℃ ~ +60℃ |
| Storage Temp. | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90% Relative Humidity(non-condensing) | |
| Storage Humidity | 0% ~ 90% Relative Humidity(non-condensing) | |
| Size | Dimensions | 154.8 x 117.4mm |
| Weight | 0.5kg |
