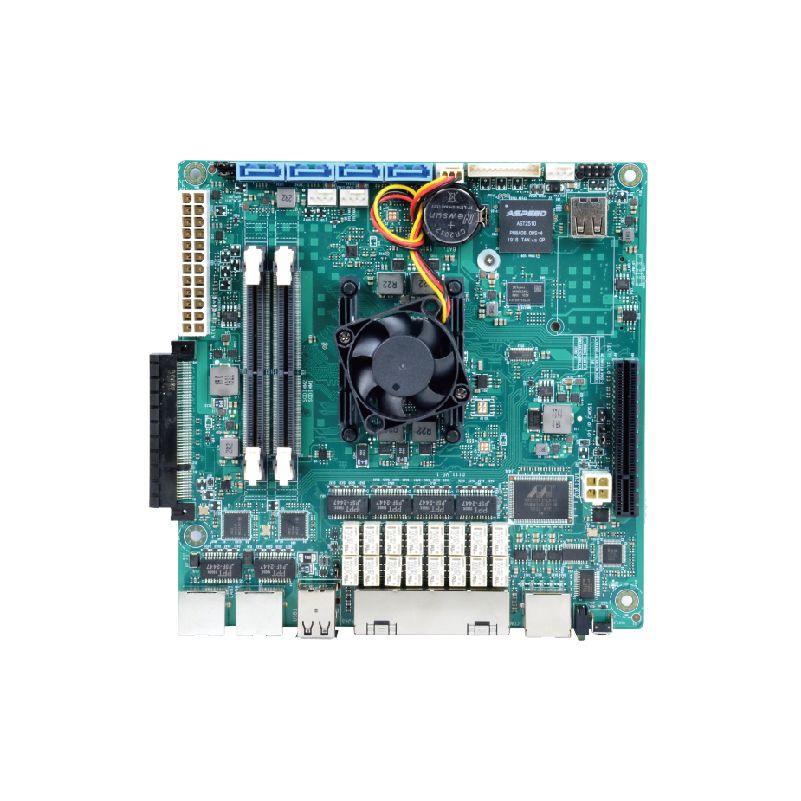

EMB-IC3000D-MI6
Mini ITX Board with Intel C3000 Series CPU
Key Features
- Support Intel C3000 Series CPU
- Support 6 x 1000M Network
- Support PCIe X8 & PCIe X4 Expansion
- Support 2+2 Bypass
- TPM2.0 Onboard
EMB-IC3000D-MI6 is applicable for Internet security, Industrial Control, Digital Signage, Surveillance, Intelligent Retail. It supports Intel C3000 Series CPU,PCIE X8 and PCIe X4 Expansion, 2+2 Bypass and TPM 2.0 function.
| Processor | CPU | Intel C3338 | Intel C3558 | Intel C3758 | Intel C3858 | Intel C3958 |
| Frequency | 1.5G~2.0GHz | 2.2GHZ | 2.2GHZ | 2GHz | 2GHz | |
| Cores | 2 | 4 | 8 | 12 | 16 | |
| Memory | Type | SO-DIMM DDR4 2400 | ||||
| Support Max Capacity | 32G | |||||
| Display | GPU | ASPeed AST2510 | ||||
| Interface | VGA Port | |||||
| Network | Controller | 2*Intel I211AT Gbe | ||||
| 4*Gbe & 2+2Bypass by Marvel 88E1543 | ||||||
| USB | Rear | 2*USB Port | ||||
| Onboard | 1*Type-A USB2.0 in horizontal type | |||||
| Storage | SATA | 4*SATA3.0 Stand SATA Port | ||||
| Mini_PCIe | Support MSATA SSD(Share with SATA) | |||||
| Serial Port | COM | Support 1*RJ45 to RS232 interface | ||||
| Expansion Slot | PCIe X8 | 1*PCIe X8 Standard & 1*PCIe X8 in horizontal type | ||||
| PCIe X4 | Support PCIe X4 | |||||
| Customize Function | Hardware Restore On AC/Powerloss | |||||
| Software | Watch Dog | Support | ||||
| WOL | Support | |||||
| Power Supply | Standard ATX Power | |||||
| Environmental | Operating Temp | 0-60℃ | ||||
| Storage Temp. | -20-80℃ | |||||
| Operation System | Windows Server 2016, Ubuntu | |||||
| Size | 17 x 17cm | |||||
